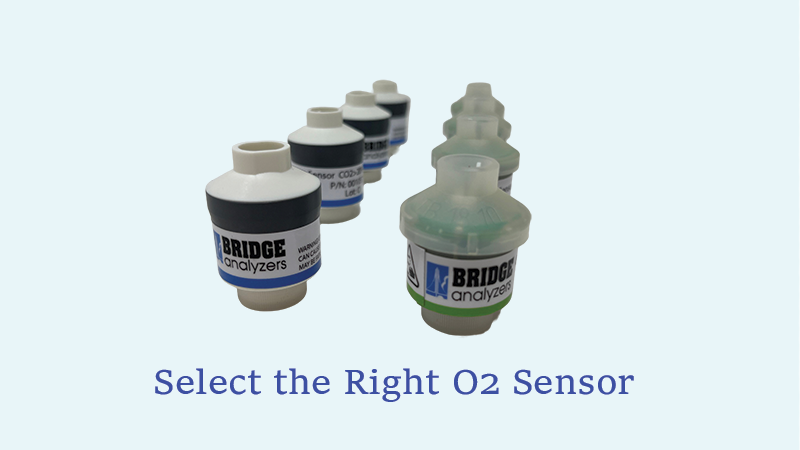

Bridge Analyzers offers two oxygen sensors for MAP Analyzer applications. The sensors are field changeable, mechanically and electrically interchangeable, and self-calibrating; aiding field configuration of any Bridge MAP Analyzer to any application.
The p/n 001140 (Green band) sensor is used to measure either residual oxygen or high oxygen (Hi-Ox) in gas mixes containing less than 20% CO2. It is identified with a Green stripe.
The p/n 001057 (Blue band) sensor is used where there is above 20% CO2 in the package headspace, and for all oxygen levels – usually residual Oxygen in high CO2 headspace gases (Lo-Ox).
See the table below for a comparison of the sensors:
| Specification | 001140 (Green band) | 001057 (Blue band) |
| Application | Fresh Cut vegetables, Fruit ripening control, Oxygen enhancement, | Residual Oxygen in High CO2 Low Oxygen meat packaging, Case-Ready Meat Lo-Ox Containing CO, and High Levels of CO2, Case-Ready Meat Hi-Ox, Headspace gas with 20% or higher CO2 |
| Oxygen Range | 0% to 100% | 0% to 100% |
| Sensitivity | 0.001% (10 ppm) | 0.001% (10 ppm) |
| CO2 in Headspace Gas | 0 to 20% | 0 to 100% |
| Response Time: | ||
| To 90% Final Value | 3.25 Seconds | <10 Seconds |
| Service Life | 18-24 Months | 18-24 Months |
