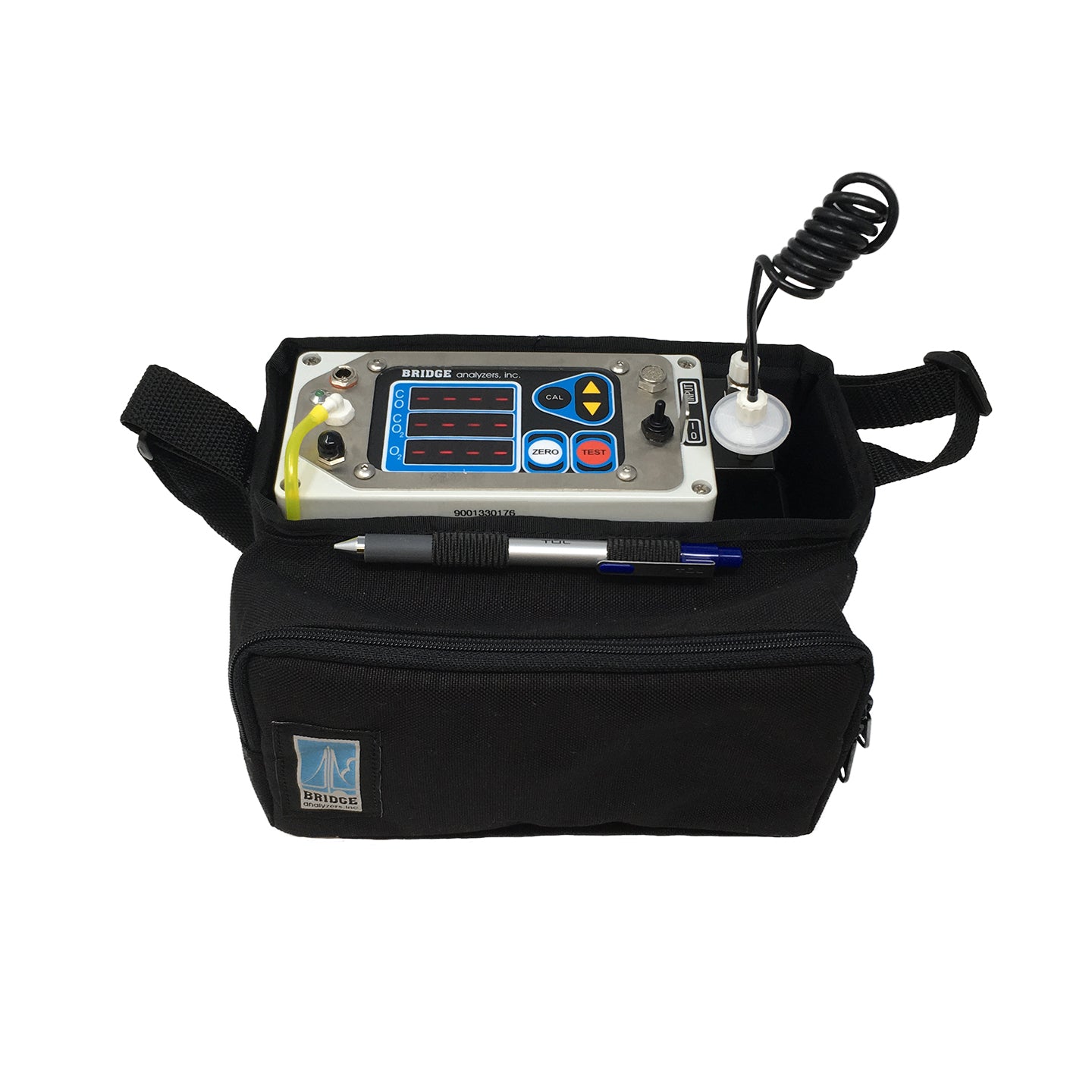

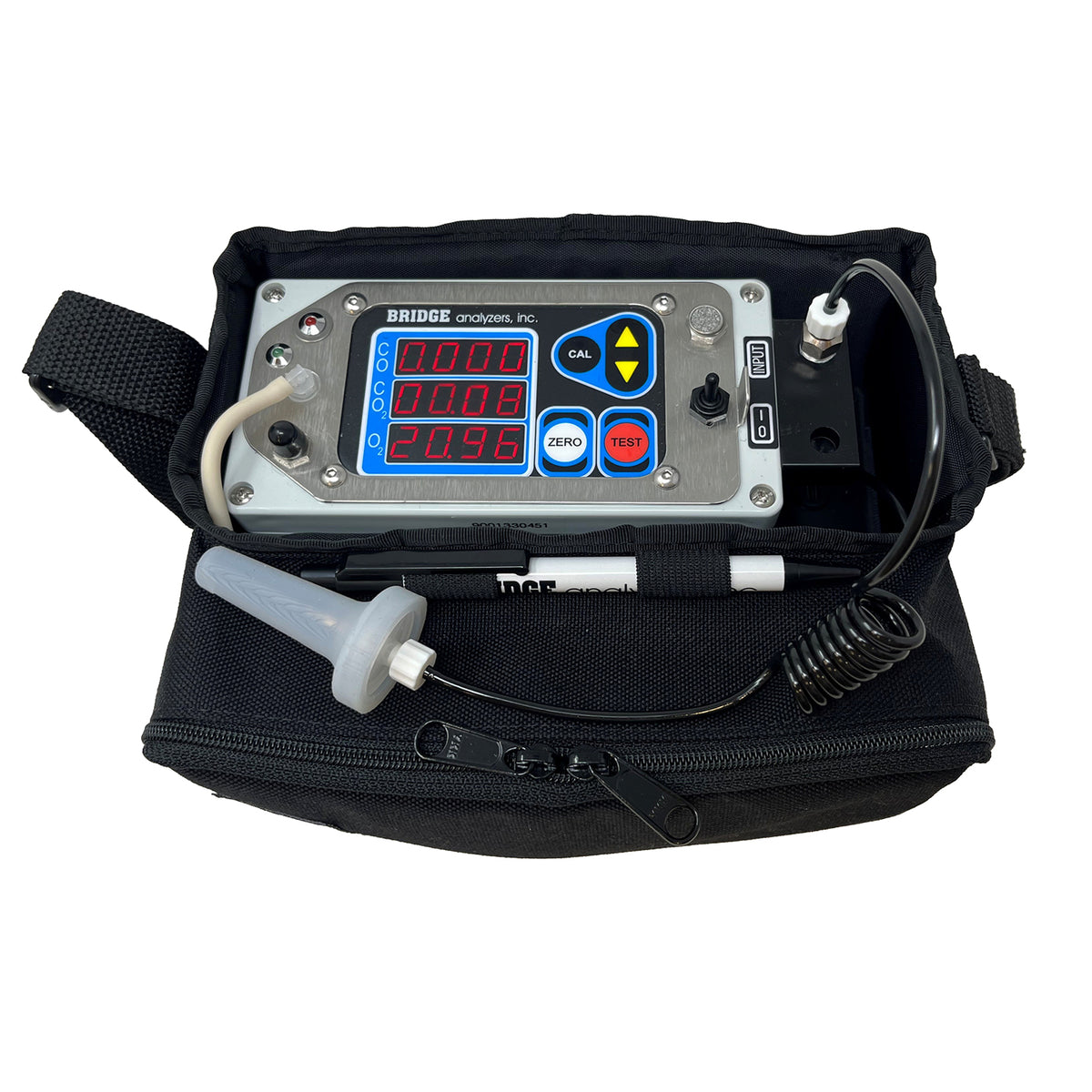

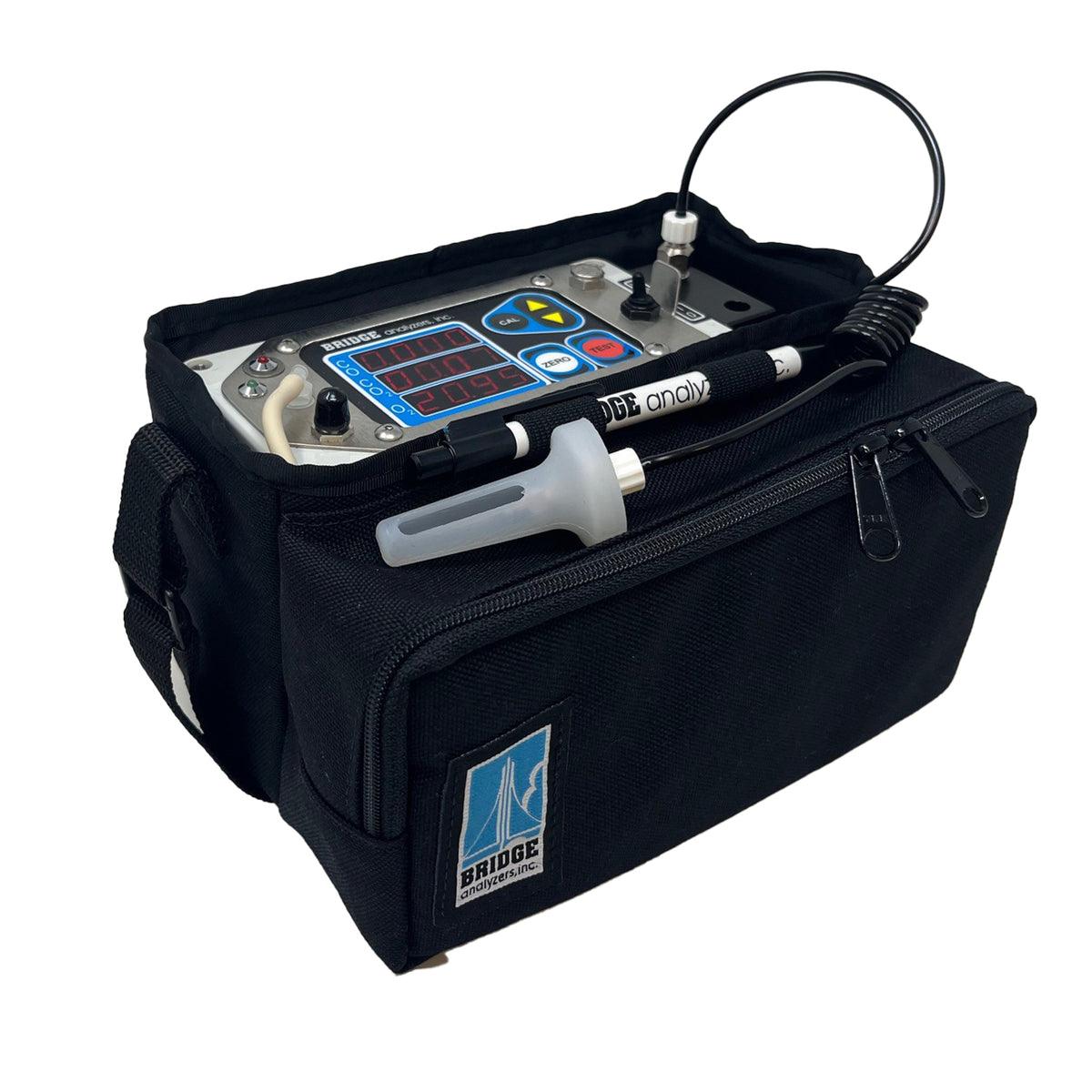

MAP Headspace Tri-Gas Analyzer, CO, CO2 and Oxygen

SKU: 900133
Regular price $7,850.00

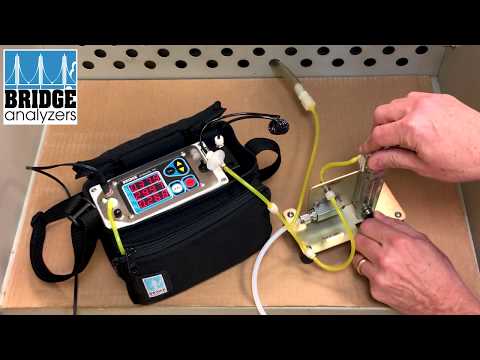

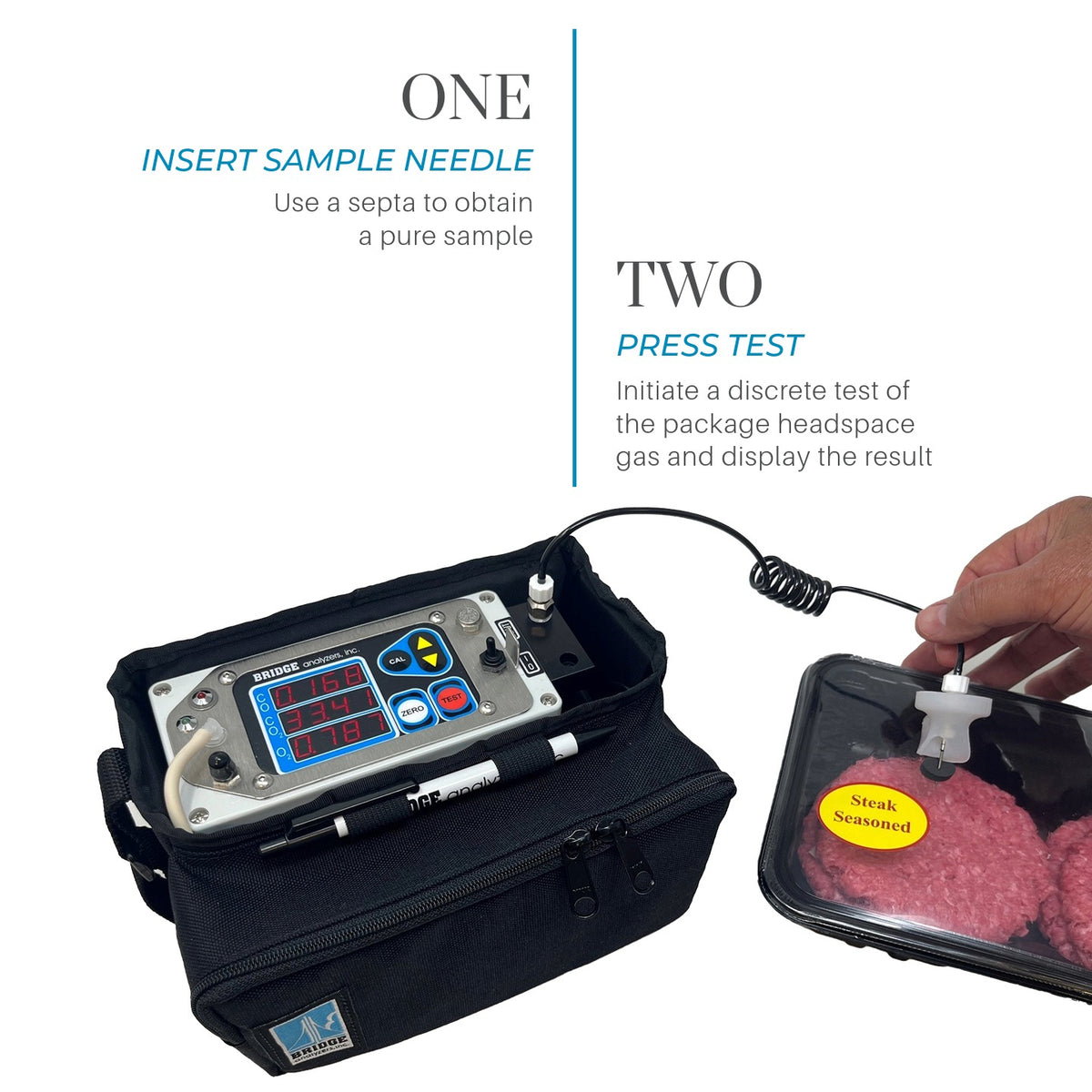

For applications where a gas purge or air replacement process has been completed, a Bridge headspace gas tester will confirm the residual oxygen level in the final package. Coupled to a gas sample line, a sample needle is used to penetrate the package exterior. While extracting a sample of the modified atmosphere, the analyzer will display an Oxygen, CO2 and CO reading. After the test, the analyzer will freeze the display with the final reading. Subsequent tests are performed in a similar manner.

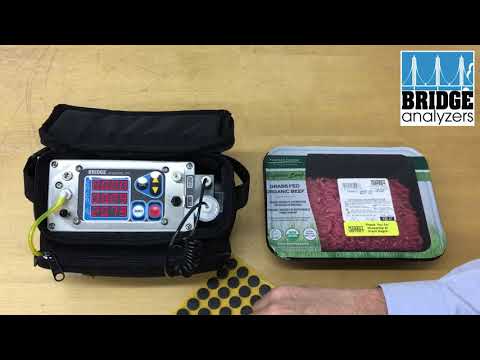

The Bridge Tri-Gas Analyzer is the perfect gas tester for Case Ready Meat applications.

The Tri-Gas Analyzer will test Oxygen (O2), and Carbon Dioxide (CO2) levels from above 0% to below 100%, and will test Carbon Monoxide (CO) from 0.000% to 1.000%.

  • CO, CO2 and O2 Measurement Specifically for Case Ready Meat.
    • High Resolution 0.001% O2 & CO for Low-Ox.
    • 100.0% O2 and CO2 Range for High-Ox.
    • MAP Headspace Analyzer With Lo-Ox and Hi-Ox Capability.
  • Sealed for Line Environments — Industrial NEMA-4 Design.
  • Cordless Operation, 14 Hours (900133).
    • Fast and Easy to use . Test measurement in 15 Seconds.
    • Stable, Trouble-free Infrared CO2.
    • Unique Lo-Ox and Hi-Ox E-C O2 sensors for unmatched accuracy.
    • Compact (6″x3″x3″), lightweight, and rugged.
